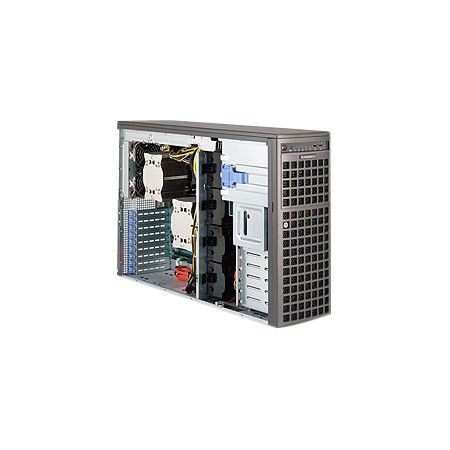

Supermicro SuperWorkstation 7047AX-72RF Barebone System - 4U Tower - Intel C602 Chipset - Socket R LGA-2011 - 2 x Processor Support - Black Item # 935695
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
935695
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Designed for optimal performance, the SuperServer 7047 SuperServer has excellent expansion capability and feature set.
Product Details
| Item # | 935695 |
| Manufacturer # | 10982343 |
| Number of SATA Interfaces | 10 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| Number of External 5.25" Bays | 3 |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Product Series | 7047 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 1.28 kW |
| height | 17.8 in |
| Certifications & Standards | ACPI 1.0; ACPI 2.0 |
| Total Number of USB Ports | 10 |
| Graphics Controller Manufacturer | Matrox |
| width | 7 in |
| Product Line | SuperWorkstation |
| package contents | SuperWorkstation SYS-7047AX-72RF (Black); 1 x Super X9DAX-7F Motherboard; 1 X 4U Chassis; 1 x 4U, SAS Backplane,x8 3.5; 2 x Ipass to 4 SATA, 50 cm, W/50cm SB, S, 30AWG; 1 x POWER DISTRIBUTOR FOR SC747 W/ GRAPHIC OUTPUT FEATURE; 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30; 4 x 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM); 2 x 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG; 3 x Black 5.25 drive tray w/o rail (SC747); 8 x Black gen 6.5 hot-swap 3.5 inch HDD Tray |
| Audio Line In | Yes |
| depth | 25.5 in |
| Product Name | SuperWorkstation SYS-7047AX-72RF (Black) |
| QuickPath Interconnect Supported | Yes |
| Number of PCI Express x16 Slots | 2 |
| Rack Height | 4U |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Number of 3.5" Bays | 8 |
| VGA | Yes |
| Audio Line Out | Yes |
| RAID Supported | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | Supermicro |
| Maximum Memory | 512 GB |
| Number of Processors Supported | 2 |
| controller type | Serial ATA/600; Serial ATA/300; 6Gb/s SAS |
| Number of Total Memory Slots | 16 |
| Number of USB 3.0 Ports | 2 |
| Input Voltage | 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 8 |
| Storage Controller Name | LSISAS2208 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Total Expansion Slots | 6 |
| Processor Socket | Socket R LGA-2011 |
| Chipset Model | C602 |
| Number of Total Expansion Bays | 11 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Tower |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | 512 GB - registered - ECC ¦ 1 TB - Load-Reduced - ECC |
| color | black |
| Number of SAS Interfaces | 8 |
| warranty length | 3-year limited |
| model name | 7047AX-72RF |
| QuickPath Interconnect | 8 GT/s |
| Number of PCI Express x8 Slots | 4 |
| Show More ▾ |
